"F" Series Continuous Soffit Vent
Designed to keep air moving even when space is limited. Made for narrow overhangs, the "F" Series Continuous Soffit Vent fits cleanly against tight walls or fascia board areas of soffits. Connector clips are included to keep installation easy and alignment consistent.
Manage moisture
Rust-free reinforcement
Easy to install
Product Options

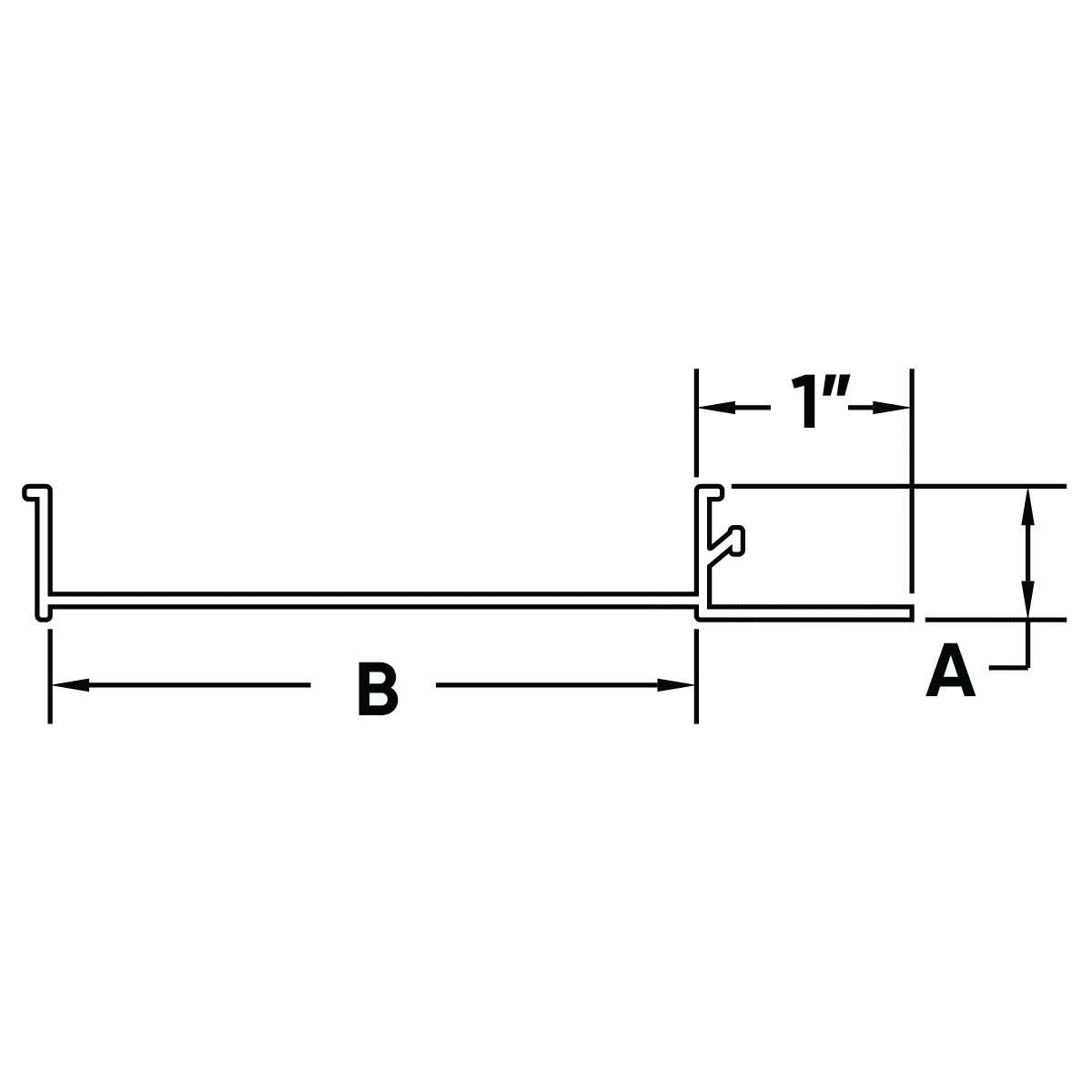

| NAME | STOCK NUMBER | PIECES PER BOX | LENGTH | A SIZE | B SIZE | AIR FLOW/LF |
|---|---|---|---|---|---|---|
|
NAME
½" "F" Series Continuous Soffit Vent, 3"
|
STOCK
NUMBER
F-3549-50
|
PIECES
PER
BOX
13
|
LENGTH
10 '
|
A SIZE
0.5 "
|
B SIZE
3 "
|
AIR FLOW/LF
15 sq in
|
|
NAME
¾" "F" Series Continuous Soffit Vent, 3"
|
STOCK
NUMBER
F-3549-75
|
PIECES
PER
BOX
13
|
LENGTH
10 '
|
A SIZE
0.75 "
|
B SIZE
3 "
|
AIR FLOW/LF
15 sq in
|
|
NAME
½" "F" Series Continuous Soffit Vent, 4"
|
STOCK
NUMBER
F-4549-50
|
PIECES
PER
BOX
13
|
LENGTH
10 '
|
A SIZE
0.5 "
|
B SIZE
4 "
|
AIR FLOW/LF
16 sq in
|
|
NAME
¾" "F" Series Continuous Soffit Vent, 4"
|
STOCK
NUMBER
F-4549-75
|
PIECES
PER
BOX
13
|
LENGTH
10 '
|
A SIZE
0.75 "
|
B SIZE
4 "
|
AIR FLOW/LF
16 sq in
|
PRODUCT RESOURCES
“F” Series Continuous Soffit Vent Submittal Sheet
“F” Series Continuous Soffit Vent Submittal Sheet
